World standard of multi cutting plotter

SpecificationsCG-75FXII PlusCG-130FXII PlusCG-160FXII Plus
Dimensions 1,285mm(50.5") x 700mm(27.5") x 1,217mm(47.9") 1,825mm(71.8") x 700mm(27.5") x 1,217mm(47.9") 2,125mm(83.6") x 700mm(27.5") x 1,217mm(47.9")
Acceptable Sheet Width 90mm~1,040mm (3.54"~40.9") 90mm~1,580mm (3.54"~62.0") 90mm~1,880mm (3.54"~74")
Max. Cutting Speed 100cm/s (39.3"/s)
Interface RS-232C, USB
Receiver buffer size 30MB Standard (20MB when in sorting)
Weight (with stand) 47kg (104 lb) 62kg (137 lb) 70kg (154 lb)

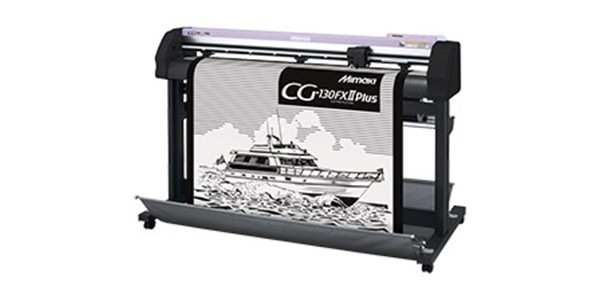

Mimaki CGFXII Plus Series

NEW: ID Cut Function – for efficient printing and cutting.

A new function "ID Cut function" that enables continuous cutting operation to be performed automatically is adopted.
The "ID Cut function" is the function that automatically scans printed-out register marks with ID, then reads and cuts cut data. While any operators scanned register marks and specified cut data for each cutting job in the past, use of the "ID Cut" function is now made possible to perform unmanned and continuous cutting operations, and operators can proceed with another operation simultaneously when the machine is performing the cutting operation.

Main features

High speed continuous crop mark detection

By continuously detecting a maximum of 4 points, nested images in both X axis and Y axis can be cut aligning each image automatically.

Accurate media feeding ensures precise contour cutting over longer-length prints

Necessary media length is fed in advance to reduce tension during cutting. This function increases the precision of long-length print media cutting.

‘Half Cut’ mechanism, a proprietary technology of Mimaki

With the original half cut function, the backing sheet can be cut leaving a little bit of half cut connecting points,which can be easily detached when necessary.Various media without backing sheets can be also cut.

Other functions:

  • Selectable clamp pressure with high and low setting ensures accurate cutting of various media.

  • Selectable three jog speeds ensure proper and easy positioning of the head to the point.

  • Over-cut function makes the starting and ending points overlapped, which eliminates uncut portion of the media.

  • Media can be loaded from back or front.

  • Up to 6 roll media can be set at a time (1 set standard).

  • Plug-in cutting software for CorelDRAW and Illustrator is included.

  • A special adaptor to use commercially available pens and USB interface are included
