MIMAKI CFL-605RT FLATBED CUTTER

Compact & Multi-cutting


Technical SpecificationsCFL-605RT
Maximum media size 630mm x 530mm
Maximum cut area 610mm x 510mm
Maximum plotting speed XY: 423mm/s Z:30mm/s
Maximum media thickness Reciprocating cutter: 10mm / Tangential cutter and creasing roller: 1,500g
Interface USB 2.0(High Speed), RS-23C, Ethernet
Dimensions (w x d x h) 1320 x 1045 x 1100 mm
Weight (max.) 109kg or lower

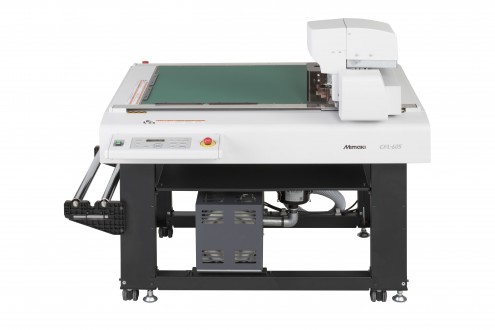

Mimaki CFL-605RT Flatbed Cutter


  • Wide range of functions including eccentric, tangential and reciprocating cutting along with creasing
  • The eccentric cutter can cup up to 1mm with optimal downforce of 30-1,000g
  • The tangental cutter will cut up to 2mm and cut through substrates such as reflective vinyl and rubber sheets
  • The creasing roller has adjustable downforce pressures of 500-1,000g
  • Pen tool for creating perfect line drawings
  • Vacuum bed
  • Vast range of applications
  • Accurate cutting by sensor reading registration marks
  • A variety of tool combinates to meet varied production demands
  • Tangential and reciprocal heads
  • Use for prototyping and short run production
  • Ideal print and cut solution with UJF-6042 LED UV Flatbed printer

  • Tangential Cutter

    The tangential cutter steers the blades as it cuts. The motor controlled blade lifts and turns to start every cut at the exact angle. Both die cutting and half-cutting are possible. The tangential cutter enables cutting materials up to 1 cm thickness. Various materials, ranging from soft to rigid, can be cut.

    Reciprocal Cutter

    A reciprocal cutter is a cutting system that is characterised by up-and-down movements of the cutter blade (7000 times per minute) in addition to tangential cutting. The reciprocal cutter is especially suitable to cut corrugated board, cardboard and foam materials up to 2 cm thickness.

    Ideal print & Cut solution with the Mimaki UJF-6042

    For printing and cutting promotional items, small signage, packaging and much more.
